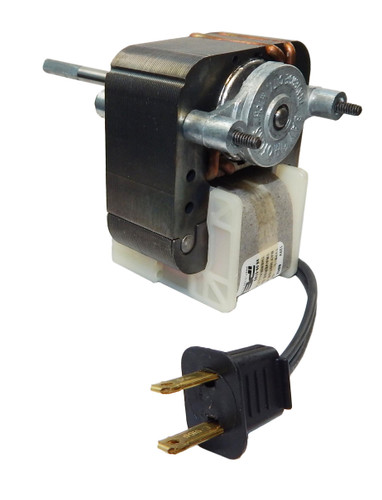

S99080180 Aftermarket Broan Fan Motor

S99080180 Aftermarket Broan Fan Motor

This aftermarket replacement motor is designed as a direct OEM equivalent for Broan model 99080180. It is ideal for ventilation and exhaust fan applications, providing reliable performance and compatibility with multiple Broan models.

Key Specifications

• Amperage: 2.02 amps
• RPM: 3000
• Voltage: 120V
• Frame / Diameter: C-Frame
• Shaft Dimensions: 7/32" diameter x 1-7/8" length
• Rotation: Clockwise (CW) shaft end

Product Features & Fitment

The motor features a 1-1/8" stack and includes a 2-prong plug for easy electrical connection. It mounts securely using two studs located on the back of the motor housing. Suggested replacement references include 8345000049, S11125038, and P-9204-4. Compatible with Broan models 509, 509S, 509-A, 509-B, C 509S-A, 509S-B, 509S-C, 509MG-A, and 509SMG-A.

Cross Reference

• 8345000049, S11125038, P-9204-4
• Fits Models: 509, 509S, 509-A, 509-B, C 509S-A, 509S-B, 509S-C, 509MG-A, 509SMG-A

Warranty

1 Year Manufacturer Warranty
