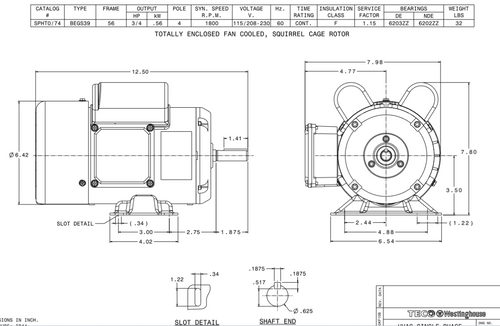

SPHT0/74 TECO-Westinghouse 3/4 HP 1800 RPM 56 Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

SKU:
SPHT0/74
Weight:
32.00 LBS
Shipping:
Calculated at Checkout
$283.97
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 3/4 hp 1800 RPM, 1-Speed, 7.0/3.5 amps, 115/208-230 Volts 60 Hz.
  • 56 Frame of Rolled Steel, Shaft: 5/8" x 1 7/8" with Slot
  • Rotation = Reversible, Overload Protector: Automatic
  • Service Factor = 1.15, Insulation Class F
  • Ball Bearing, Capacitor Start/Run
  • 1 Year Manufacture Warranty

General purpose motor for HVAC. Totally Enclosed Fan-Cooled (TEFC)
