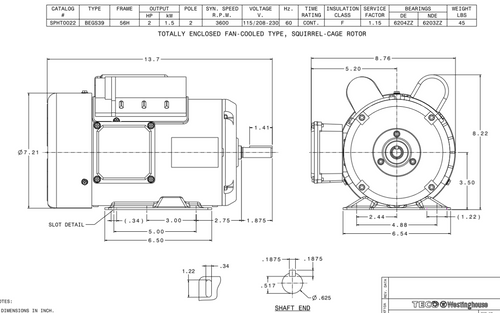

SPHT0022 TECO-Westinghouse 2 HP 3600 RPM 56H Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

SPHT0022 TECO-Westinghouse 2 HP 3600 RPM 56H Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

This TECO-Westinghouse general purpose electric motor is designed for HVAC applications, providing reliable performance as a direct replacement for compatible 2 HP motors. It features a totally enclosed fan-cooled (TEFC) design to ensure durability in various environments.

Key Specifications

• Horsepower: 2 HP
• RPM: 3600
• Voltage: 115/208-230 V
• Amperage: 16.5/8.2 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: 56H Rolled Steel
• Shaft Dimensions: 5/8" x 1 7/8" with Slot
• Rotation: Reversible
• Bearings: Ball Bearing

Product Features & Fitment

This single-phase motor operates at a single speed and includes a capacitor start/run configuration for efficient startup and operation. It is equipped with an automatic overload protector and insulation class F for enhanced thermal performance. The motor’s 56H rolled steel frame and reversible rotation make it suitable for a wide range of HVAC installations.

Warranty

1 Year Manufacturer Warranty
