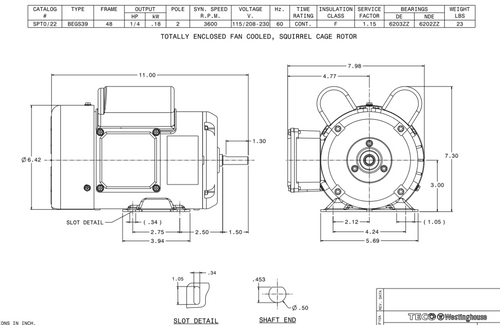

SPT0/22 TECO-Westinghouse 1/4 HP 3600 RPM 48 Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

SKU:
SPT0/22
Weight:
23.00 LBS
Shipping:
Calculated at Checkout
$221.99
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 1/4 hp 3600 RPM, 1-Speed, 2.6/1.3 amps, 115/208-230 Volts 60 Hz.
  • 48 Frame of Rolled Steel, Shaft: 1/2" x 1 1/2" with Flat
  • Rotation = Reversible, Overload Protector: Automatic
  • Service Factor = 1.15, Insulation Class F
  • Ball Bearing, Capacitor Start/Run
  • 1 Year Manufacture Warranty

General purpose motor for HVAC. Totally Enclosed Fan-Cooled (TEFC)
