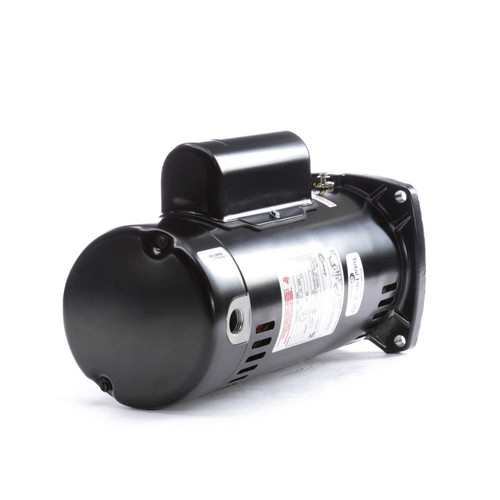

- 1.5 HP 3450 RPM, 10.4 amps, 230V 60hz
- Automatic Overload Protection - Service Factor 1.47
- Non-Reversible - CCW Rotation facing the shaft
- Open Drip Proof - Ball Bearings
- 48Y Frame-Square Flange; 5/8" diameter threaded stainless steel shaft
Swimming pool pump motor. Commonly found on inground pool pumps such as Sta-Rite Max-E Glas, Dura Glas, Dyna Glas and many other pumps requiring a 48Y square flange frame motor. 48Y motors do not have internal threaded hole in shaft.
Century motors are found on most swimming pool pumps. Standard 1081 pump duty motor. Stainless steel shaft. Sealed ball bearings.
Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Wiring diagram on motor name plate.
1 year warranty
AO Smith/Century Models: K48M2PA105, K48M2PA105A, K48M2PA105B, K48M2PA105C, K48M2PA105C4
US Electric Equivalent ESQ1152
Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect.
Please check your local and State codes to comply with their requirements for replacement pump motors.
Click here to help answer more questions
ATTENTION: Shipping Restrictions Apply!
California: This replacement pump motor does not comply with California's Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the replacement pump motor must be a variable speed.
New York: New York State Energy Research and Development Authority (NYSERDA) Section 509.23 has adopted the same standards as the State of California Title 20 laws. This pump/motor fails to meet these new regulations. Consequently, shipping this pump/motor to New York is illegal and violates state law. Should an order for this item be placed with a New York shipping address, we will be forced to cancel the order.
Familiarize yourself with the laws and building codes in your state and local area in regards to replacing pump motors, in order to adhere to their regulations.
To comply with current and upcoming regulations we recommend upgrading now to a variable speed motor.
We recommend using Century EVQ225 2.25THP Variable Speed Motor
