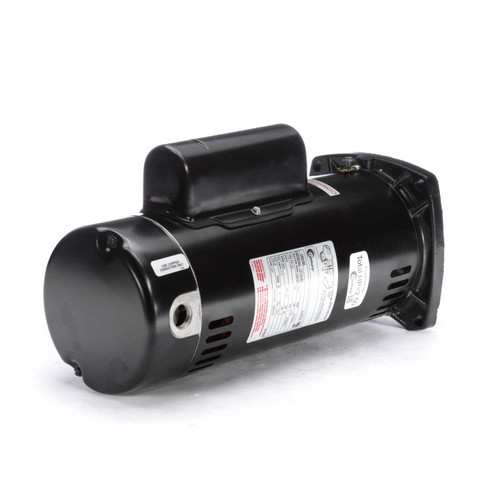

USQ1252 Century 2.5 hp 3450 RPM 48Y Frame Square Flange 230V Pool Motor

USQ1252 Century 2.5 hp 3450 RPM 48Y Frame Square Flange 230V Pool Motor

This 2.5 horsepower pool motor is designed for use with inground swimming pool pumps, including popular models such as Sta-Rite Max-E Glas, Dura Glas, and Dyna Glas. It serves as a reliable replacement motor featuring a 48Y square flange frame and is suitable for standard 1081 pump duty applications.

Key Specifications

• Horsepower: 2.5 HP
• RPM: 3450
• Voltage: 230V
• Amperage: 11.2 amps
• Frame / Diameter: 48Y Frame - Square Flange
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features an automatic overload protection system with a service factor of 1.0 and is non-reversible. It has a square flange mount with a round body and no base, including four threaded bolt holes on the face for secure pump mounting. The motor shaft does not have an internal threaded hole. Wiring diagrams are provided on the motor nameplate for ease of installation. Note that shipping restrictions apply in certain states due to energy efficiency regulations.

Warranty

• Mechanical Dimensions
• Pool Motor Manual
• Brochure
