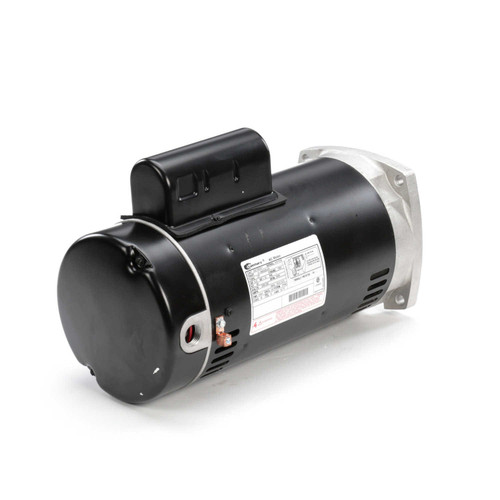

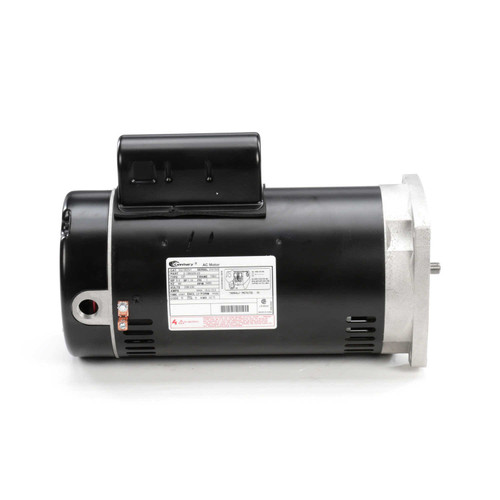

SQ1302V1 Century 3 hp 3450 RPM 56Y Frame Square Flange 230V Pool Motor
The SQ1302V1 is a 3 horsepower, 3450 RPM pool motor designed to replace Century SQ1302 and similar models. It is commonly used on inground pool pumps such as Sta-Rite Max-E Glas, Dura Glas, and Dyna Glas, providing reliable performance for swimming pool pump applications.
Key Specifications
- Horsepower: 3 HP
- RPM: 3450
- Voltage: 208-230V 60Hz
- Amperage: 13.3 Amp
- Enclosure: Open Drip Proof
- Frame / Diameter: 56Y Frame - Square Flange
- Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
- Rotation: Non-Reversible, CCW rotation facing the shaft
- Bearings: Ball Bearings
Product Features & Fitment
This motor features automatic overload protection with a service factor of 1.15 and sealed ball bearings for durability. It includes four threaded bolt holes on the face for secure pump mounting and a wiring diagram on the motor nameplate for easy installation. The stainless steel shaft is internally threaded, distinguishing it from 48Y frame motors which lack this feature. Please verify local and state codes before installation to ensure compliance with current energy regulations. Shipping restrictions apply in California and New York due to efficiency standards requiring variable speed motors.
Cross Reference
- Century SQ1302
- Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect
