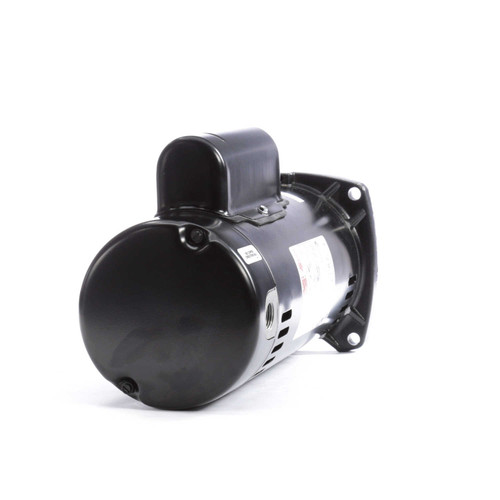

SQS1152R Century 1.5 hp 2-Speed 48Y Frame 230V Square Flange Pool Motor Century # SQS1152R

33.00 LBS
Free Shipping
Was: $627.80
Now: $532.00
Adding to cart… The item has been added

Century 48Y Square Flange - Energy Efficient - Two Speed Pool Motor

  • 1.5 HP 3450/1725 RPM - High/Low Speed
  • 10.0/3.0 amps, 230 Volts, Single Phase, 60hz
  • Automatic Overload Protection - Service Factor 1.47
  • Energy Efficient High and Low Speed
  • Non-Reversible - CCW Rotation facing the shaft
  • Open Drip Proof - Ball Bearings
  • 5/8" diameter threaded stainless steel shaft
  • Meets California Energy Commission Appliance Regulations 2008

Does Not come with power cord or High/Low toggle switch

Square Flange replacement inground pool pump motor. This is a 2 speed motor. Motor fits many in ground pool pumps such as PacFab Challenger, Whisperflo, Pentair
Wiring diagram on motor name plate

Century Mod No. K48M2PA105, K48M2PA105AZ

Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect.
Please check your local and State codes to comply with their requirements for replacement pump motors.
Click here to help answer more questions

ATTENTION: Shipping Restrictions Apply!
 This replacement pump motor does not comply with California's Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the replacement pump motor must be a variable speed.

To comply with current and upcoming regulations we recommend upgrading now to a variable
 speed motor.
We recommend using Century EVQ225 2.25THP Variable Speed Motor

Click here for Inground Variable Speed Pumps
