105603100BQF Stearns Brake Assembly

105603100BQF Stearns Brake Assembly

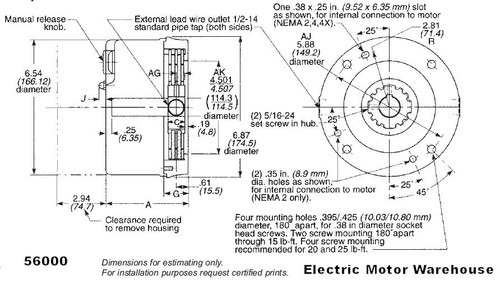

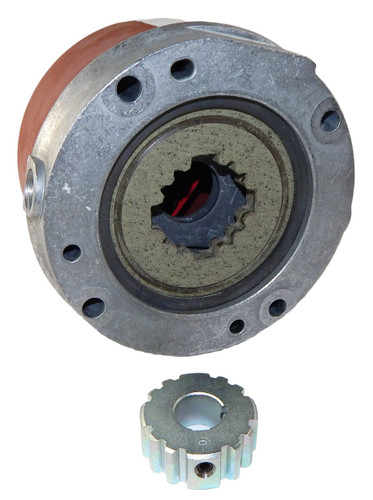

The 105603100BQF Stearns Brake Assembly is an electric motor brake designed for Series 56000 disc brakes. It is suitable for NEMA 2 applications requiring solenoid-actuated, spring-set braking with manual torque adjustment, commonly used in industrial motor and HVAC systems.

Key Specifications

• Voltage: 208-230/460 V
• RPM: 5000 (maximum horizontal speed)
• Enclosure: IP23 (NEMA 2)
• Shaft Dimensions: 5/8" hub bore
• Rotation: Horizontal mount

Product Features & Fitment

This brake features a solenoid-actuated, spring-set design with manual wear adjustment and a side manual release lever with automatic reset. It includes Class B coil insulation and comes with 24-inch lead wires. The housing is stamped steel, and the brake is CSA certified (File LR-6254). Installation requires horizontal mounting consistent with the specified maximum speed and enclosure rating.

Warranty

• Stearns Catalog
• Install Manual
• Parts Manual
