108703100EQF Stearns Brake Assembly

108703100EQF Stearns Brake Assembly

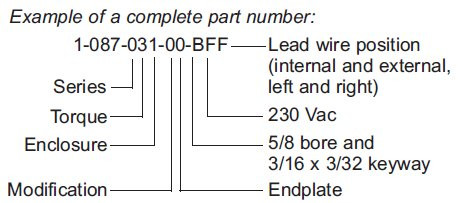

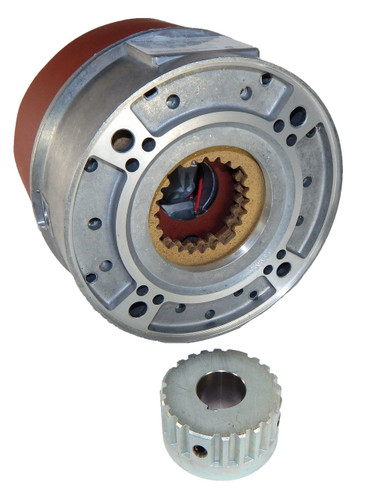

The 108703100EQF is a Series 87000 solenoid-actuated, spring-set disc brake designed for industrial motor applications requiring reliable stopping power. It replaces standard NEMA 2 brakes and is ideal for horizontal mounting in three-phase motor systems.

Key Specifications

• Voltage: 208-230/460 V
• RPM: 5000 (maximum, horizontal mount)
• Enclosure: IP23 (NEMA 2)
• Shaft Dimensions: 1-1/8" hub bore
• Torque: 25 ft-lb
• Coil Insulation Class: B

Product Features & Fitment

This brake features manual wear adjustment and a side manual release lever with automatic reset. It is designed for horizontal mounting only; vertical mounting requires additional parts and must be ordered separately by contacting the supplier. The assembly includes a 24-inch lead wire and a stamped steel housing with a double C-face configuration. For applications not listed or custom requirements, customer support is available to assist with the extensive range of brake combinations.
