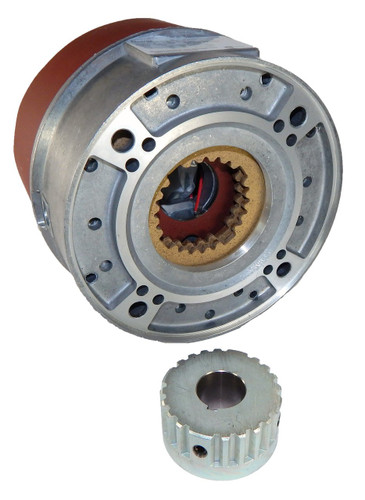

The 108704100EQF is a Series 87000 disc brake assembly designed for industrial motor applications requiring reliable stopping power. This solenoid-actuated, spring-set brake provides manual torque adjustment and is suitable for horizontal mounting on NEMA 2 frame motors.

Key Specifications

• Voltage: 208-230/460 V
• RPM: Maximum 5000 RPM (horizontal mount)
• Enclosure: IP23 (NEMA 2)
• Shaft Dimensions: 1-1/8" hub bore
• Torque: 35 foot-pounds
• Coil Insulation: Class B
• Mounting: Horizontal only

Product Features & Fitment

This brake features a manually adjusted torque setting with a side manual release lever and automatic reset. It includes a 24-inch lead wire and a stamped steel housing with double C-face mounting. For vertical mounting configurations, additional parts are required and must be ordered separately by contacting the supplier. Due to the wide range of Stearns brake combinations, customers are encouraged to reach out for assistance if their specific brake model is not listed. Lead time for shipping is approximately one week.
