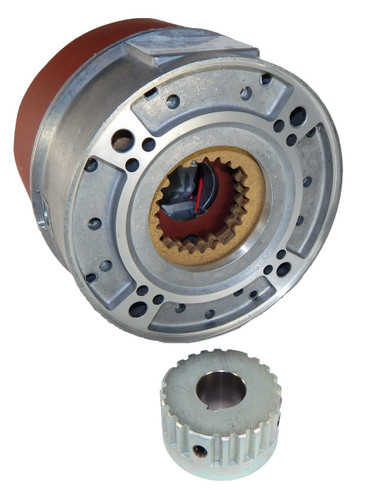

108704400EPF Stearns Brake Assembly

108704400EPF Stearns Brake Assembly

The 108704400EPF is a Series 87000 solenoid-actuated, spring-set disc brake designed for industrial motor applications requiring precise torque control and reliable stopping power. It replaces standard NEMA 4 brakes and is ideal for horizontal mounting on electric motors.

Key Specifications

• Voltage: 115/208-230V
• Torque: 35 Foot Pounds
• Shaft Dimensions: 1-1/8" Hub Bore
• Enclosure: IP23 (formerly NEMA 2)
• Maximum Speed: 5000 RPM (Horizontal Mount)
• Coil Insulation: Class B

Product Features & Fitment

This brake features manual wear adjustment and a side manual release lever with automatic reset. It is designed for horizontal mounting only; vertical mounting requires additional parts and must be ordered separately. The brake includes a 24-inch lead wire and a stamped steel housing with double C-face mounting. For custom configurations or unlisted models, contact the supplier for assistance. Lead time for shipment is approximately one week.
