175659.00 Leeson | Stearns Brake Kit 1.5 ft lb. 105601101002 115/230V
This Stearns brake kit is designed to convert select older Leeson electric motors into brake-motor configurations. It replaces part number 1-056-011-01-002 and is suitable for applications requiring up to 1.5 ft-lb of static torque.
Key Specifications
- Horsepower: 1 HP max
- RPM: 1800
- Voltage: 115-208/230 V, 50/60 Hz
- Enclosure: IP23
- Frame / Diameter: 56, 143T, 143TC, 145, 145TC
- Shaft Dimensions: 5/8" or 7/8" diameter
Product Features & Fitment

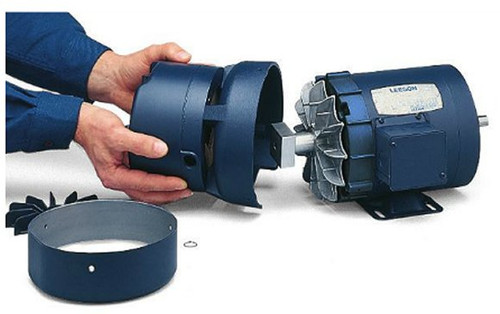

The kit installs easily on the rear of compatible Leeson motors and includes all necessary mounting hardware. It is designed for motors with NEMA frames listed above and provides 3 ft-lb of braking torque. Note that the brake supports a start/stop cycle of no more than one stop per minute when used with a motor and reducer. This product is discontinued and considered obsolete once current stock is depleted.
