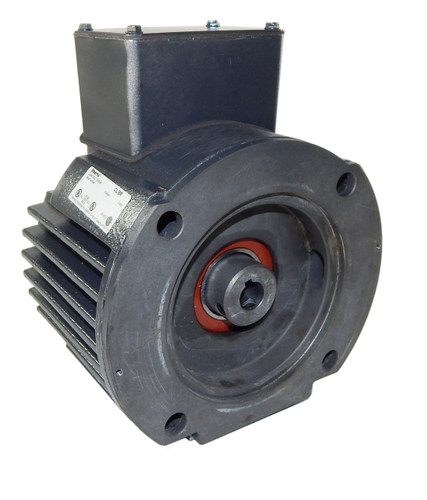

Stearns Super-Mod 90VDC Clutch ONLY 2-36-0561-01-AJL

Part #
236056101AJL
Manufacturer
Stearns Brakes
Weight
24.00 LBS
Shipping
Calculated at checkout
Price:
$869.22 RRP:

Description

  • CLUCH ONLY-no brake
  • Model SM-50-1040
  • 90-100 VDC
  • 5/8" Diameter Shaft
  • 16 Static Torque lb-ft
  • 10 Dynamic Torque lb-ft
  • NEMA Frame 56C/48Y
  • Thermal capacity 5000 ft-lb min.
  • TENV IP-54 enclosure
  • Maximum overhung capacity = 85 pounds
  • UL/CSA
  • Power-on Clutch Engagement

Base Kit Available # 578110101
Input Shaft Kit Available # 578610031

NOTE: There are no replacement parts available for the clutch.
Ref. 10545909

PDF Documents
