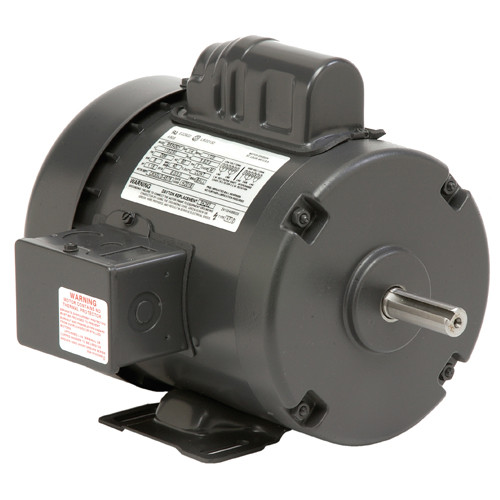

T13C3J Nidec 1/3 hp 1200 RPM 115/208-230V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor
T13C3J Nidec 1/3 hp 1200 RPM 115/208-230V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor
T13C3J Nidec 1/3 hp 1200 RPM 115/208-230V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor
T13C3J Nidec 1/3 hp 1200 RPM 115/208-230V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor

Nidec

T13C3J Nidec 1/3 hp 1200 RPM 115/208-230V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor

(No reviews) Write a Review
$591.10
$527.74
SKU T13C3J
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1/3 HP
RPM 1200
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 3.4 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/3 hp 1200 RPM, 6.8/3.4-3.4 amps 115/208-230V Volts 60 Hz Capacitor Start Motor
  • NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = None
  • Rigid Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C063JGT5367015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1/3 HP
RPM 1200
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 3.4 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
