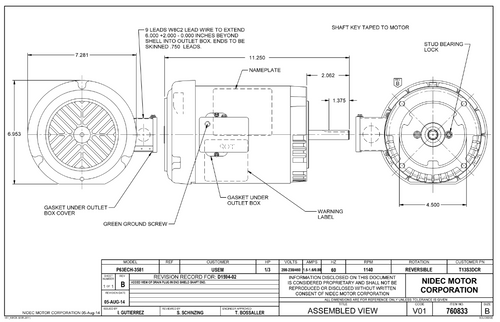

T13S3DCR Nidec 1/3 hp 1200 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
T13S3DCR Nidec 1/3 hp 1200 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
T13S3DCR Nidec 1/3 hp 1200 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
T13S3DCR Nidec 1/3 hp 1200 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor

Nidec

T13S3DCR Nidec 1/3 hp 1200 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$324.30
$289.46
SKU T13S3DCR
Availability Please email for availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT

CURRENTLY OUT OF STOCK

Description
  • 1/3 hp 1200 RPM, 1.6-1.6/0.8 amps 208-230/460 Volts 60 Hz Three Phase Motor
  • NEMA 56C frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. P063ECH3581025B
