- 1 hp 1800 RPM, 14.0/6.9-7.0 amps 115/208-230V Volts 60 Hz Capacitor Start Motor
- NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 7/8" Diameter x 2 1/4"
- Service Factor: 1.15 Overload protection = Manual
- Rigid Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty

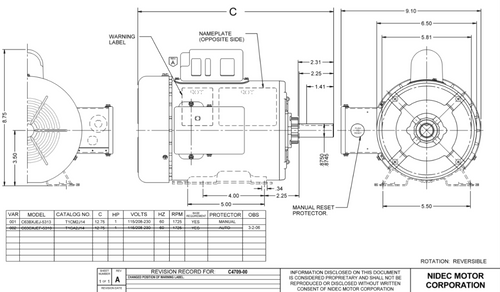

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C063JEJ5313015B
