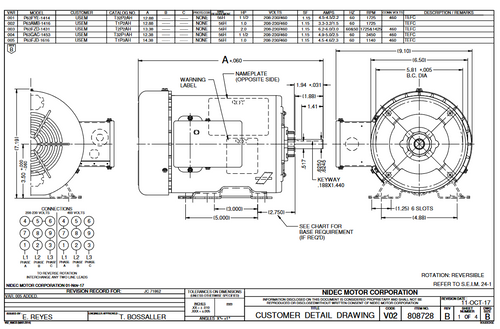

T1P2AH Nidec 1 hp 1800 RPM 56 Frame 208-230/460V TEFC 3-Phase Electric Motor

T1P2AH Nidec 1 hp 1800 RPM 56 Frame 208-230/460V TEFC 3-Phase Electric Motor

This general-purpose 3-phase electric motor is designed for a wide range of industrial applications requiring reliable performance and durability. It is suitable for replacing or upgrading existing motors with similar specifications.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 3.3-3.2/1.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and includes Class F insulation for enhanced thermal protection. It does not include overload protection and comes with a wiring diagram on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
