T2C1J14C Nidec 2 hp 3600 RPM 145TC (Rigid Base) 115/208-230V TEFC 1-Phase Motor
T2C1J14C Nidec 2 hp 3600 RPM 145TC (Rigid Base) 115/208-230V TEFC 1-Phase Motor
T2C1J14C Nidec 2 hp 3600 RPM 145TC (Rigid Base) 115/208-230V TEFC 1-Phase Motor
T2C1J14C Nidec 2 hp 3600 RPM 145TC (Rigid Base) 115/208-230V TEFC 1-Phase Motor

Nidec

T2C1J14C Nidec 2 hp 3600 RPM 145TC (Rigid Base) 115/208-230V TEFC 1-Phase Motor

(No reviews) Write a Review
$879.75
$785.11
SKU T2C1J14C
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 2 HP
RPM 3600
Phase Single Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 9.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 hp 3600 RPM, 19.5/10.8-9.7 amps 115/208-230 Volts 60 Hz Cap Start Single Phase Motor
  • NEMA 143TC Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

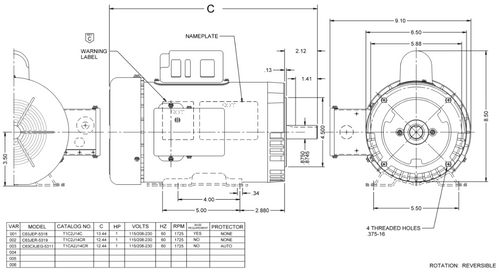

General purpose C-Face motor for pumps, conveyors, air compressors, and blowers. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T063DAE1598015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 2 HP
RPM 3600
Phase Single Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 9.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
