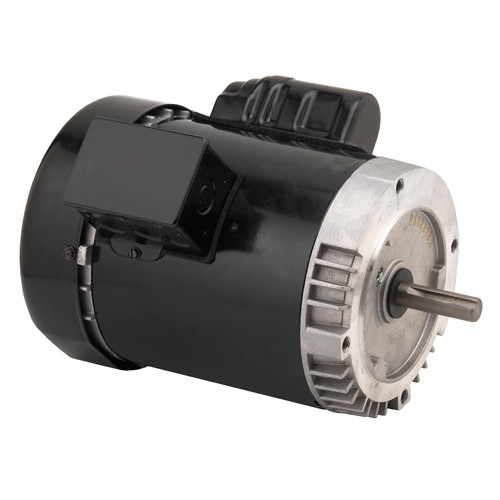

T2CA2JCR Nidec 2 hp 1800 RPM 56C (No Base) 115/208-230V TEFC 1-Phase Motor

T2CA2JCR Nidec 2 hp 1800 RPM 56C (No Base) 115/208-230V TEFC 1-Phase Motor

This Nidec 2 horsepower, 1800 RPM single-phase motor is designed for general-purpose applications such as pumps, conveyors, air compressors, and blowers. It serves as a reliable replacement motor with a totally enclosed fan-cooled (TEFC) design for enhanced durability in various industrial environments.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 18.9/10.3-9.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

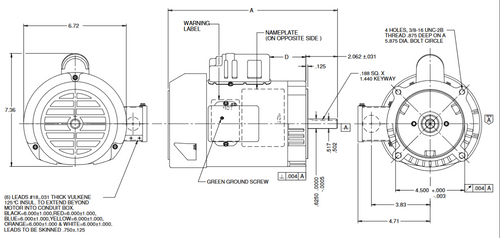

• Frame / Diameter: NEMA 56C Rolled Steel Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a C-face mount and a keyed shaft for secure coupling. It includes a capacitor start for single-phase operation and class F insulation for thermal protection. The wiring diagram is conveniently located on the motor nameplate to assist with installation. Overload protection is automatic, ensuring reliable operation under varying load conditions.

Warranty

1 Year Manufacturer Warranty
