T32CM2JCR Nidec 1 1/2 hp 1800 RPM 56C (No Base) 115/208-230V TEFC 1-Phase Motor
T32CM2JCR Nidec 1 1/2 hp 1800 RPM 56C (No Base) 115/208-230V TEFC 1-Phase Motor
T32CM2JCR Nidec 1 1/2 hp 1800 RPM 56C (No Base) 115/208-230V TEFC 1-Phase Motor
T32CM2JCR Nidec 1 1/2 hp 1800 RPM 56C (No Base) 115/208-230V TEFC 1-Phase Motor

Nidec

T32CM2JCR Nidec 1 1/2 hp 1800 RPM 56C (No Base) 115/208-230V TEFC 1-Phase Motor

(No reviews) Write a Review
$805.00
$718.52
SKU T32CM2JCR
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 7.2 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting C-Face
Adding to cart… The item has been added
Description
  • 1 1/2 hp 1800 RPM, 14.4/8.0-7.2 amps 115/208-230 Volts 60 Hz Cap Start Single Phase Motor

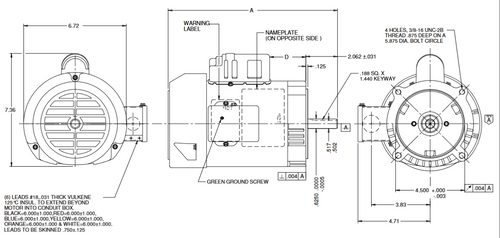

  • NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = Manual
  • C-Face Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C-Face motor for pumps, conveyors, air compressors, and blowers. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T063DAZ1613015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 7.2 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting C-Face
!
