TE135 Century 7 1/2 hp 1800 RPM 200V 3-Phase 213T Frame TEFC (rigid base) Motor
TE135 Century 7 1/2 hp 1800 RPM 200V 3-Phase 213T Frame TEFC (rigid base) Motor
TE135 Century 7 1/2 hp 1800 RPM 200V 3-Phase 213T Frame TEFC (rigid base) Motor
TE135 Century 7 1/2 hp 1800 RPM 200V 3-Phase 213T Frame TEFC (rigid base) Motor

Century Electric Motor

TE135 Century 7 1/2 hp 1800 RPM 200V 3-Phase 213T Frame TEFC (rigid base) Motor

(No reviews) Write a Review
$1,333.89
$1,082.15
SKU TE135
UPC 7.87E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 213T
Enclosure TEFC
Hertz 60 Hz
Amperage 22.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 7 1/2 hp 1800 RPM, 22.1 amps 200 Volts 60hz. Three Phase

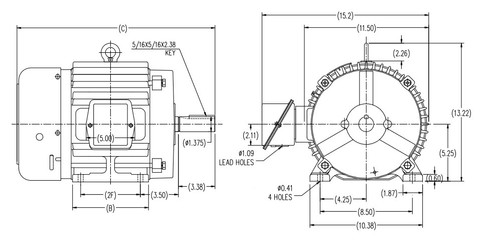

  • NEMA 213T cast iron frame, Keyed Shaft 1-3/8" Diameter x 3 3/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base with dual frame mounting holes, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty. Meets NEMA premium efficiencies

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. TE135

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 213T
Enclosure TEFC
Hertz 60 Hz
Amperage 22.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
