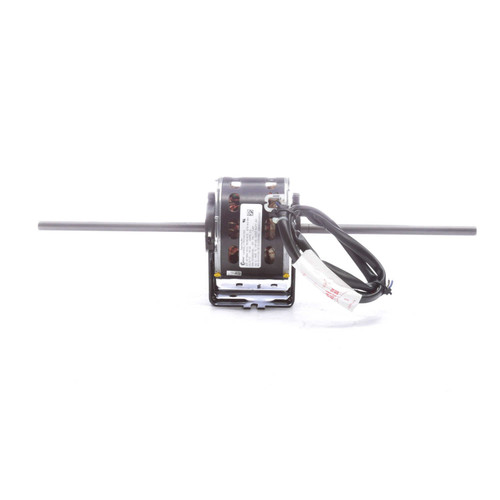

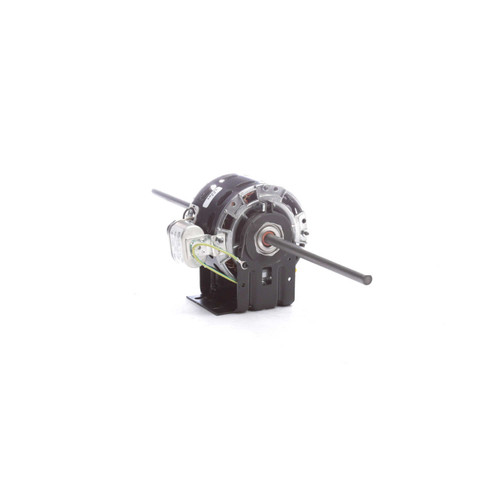

Model 641 Century Trane HVAC Electric Motor (X70500133-01) 1/30 hp 1100 RPM 115V Century # 641

Model 641 Century Trane HVAC Electric Motor (X70500133-01) 1/30 hp 1100 RPM 115V

This Model 641 electric motor is designed for HVAC applications and serves as a suggested replacement for Century part number 641 and Trane part X70500133-01 (DE3E152). It delivers reliable performance with a 1/30 horsepower rating and three-speed operation.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 1100
• Voltage: 115 V
• Amperage: 0.5 / 0.4 / 0.3 A
• Frame / Diameter: 5" motor diameter
• Shaft Dimensions: 8.5" length x 1/2" diameter x 8.5" length (note: likely a typo in original; shaft length usually one dimension)
• Rotation: Clockwise (CW) Lead End
• Bearings: Sleeve bearings

Product Features & Fitment

The motor features a 3-speed design with sleeve bearings and includes a 2-prong capacitor for easy installation. It has 35" leads for electrical connections and a compact motor case length of 3.5". This motor is suitable for direct replacement in compatible HVAC systems requiring clockwise rotation at the lead end.

Cross Reference

• X70500133-01, DE3E152

Warranty

1 Year Manufacturer Warranty
