U10V1B Nidec 10 hp 3600 RPM 215TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

U10V1B Nidec 10 hp 3600 RPM 215TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

SKU:
U10V1B
Weight:
125.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $1,117.00
Now: $997.30
Adding to cart… The item has been added
  • 10 hp 3600 RPM, 23.5/11.8 amps 230/460 Volts 60 Hz Three Phase Motor

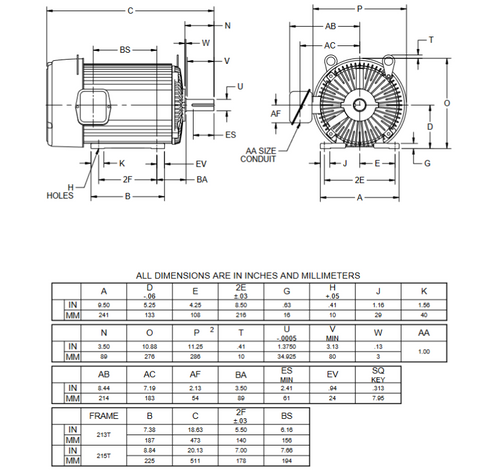

  • NEMA 215TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools. 5:1 speed range at constant torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. HA50

!
