U3V1BC Nidec 3 hp 3600 RPM 182TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
U3V1BC Nidec 3 hp 3600 RPM 182TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
U3V1BC Nidec 3 hp 3600 RPM 182TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
U3V1BC Nidec 3 hp 3600 RPM 182TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

Nidec

U3V1BC Nidec 3 hp 3600 RPM 182TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

(No reviews) Write a Review
$729.10
$651.25
SKU U3V1BC
Availability Subject to Availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 8.2/4.1 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3 hp 3600 RPM, 8.2/4.1 amps 230/460 Volts 60 Hz Three Phase Motor

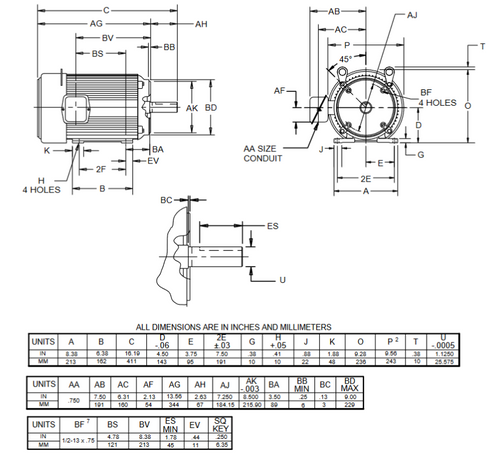

  • NEMA 182TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools. 5:1 speed range at constant torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. HA42

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 8.2/4.1 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
