U13T2BCR Nidec 1/3 hp 1800 RPM 56C (No Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
U13T2BCR Nidec 1/3 hp 1800 RPM 56C (No Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
U13T2BCR Nidec 1/3 hp 1800 RPM 56C (No Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
U13T2BCR Nidec 1/3 hp 1800 RPM 56C (No Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

Nidec

U13T2BCR Nidec 1/3 hp 1800 RPM 56C (No Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

(No reviews) Write a Review
$347.30
$310.04
SKU U13T2BCR
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1/3 HP
RPM 1800
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 1.6/0.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description
  • 1/3 hp 1800 RPM, 1.6/0.8 amps 230/460 Volts 60 Hz Three Phase Motor

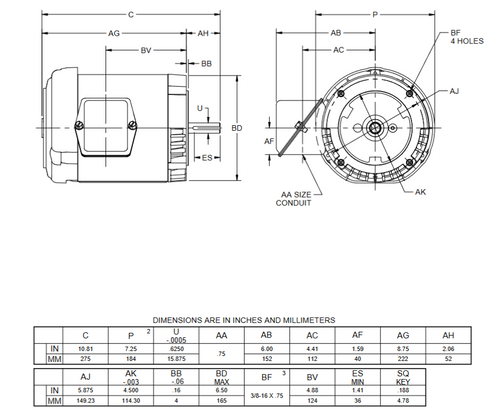

  • NEMA 56C Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools. 5:1 speed range at constant torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. BG74

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1/3 HP
RPM 1800
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 1.6/0.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
