U1V3BC Nidec 1 hp 1200 RPM 145TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
U1V3BC Nidec 1 hp 1200 RPM 145TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
U1V3BC Nidec 1 hp 1200 RPM 145TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
U1V3BC Nidec 1 hp 1200 RPM 145TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

Nidec

U1V3BC Nidec 1 hp 1200 RPM 145TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

(No reviews) Write a Review
$611.80
$546.37
SKU U1V3BC
Availability Subject to Availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1 HP
RPM 1200
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 3.7/1.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 hp 1200 RPM, 3.7/1.8 amps 230/460 Volts 60 Hz Three Phase Motor

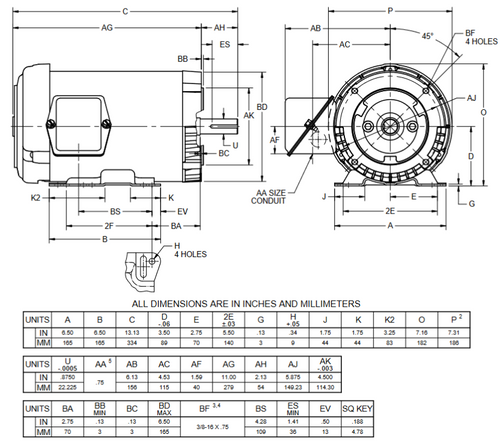

  • NEMA 145TC Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools. 5:1 speed range at constant torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. HA35

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1 HP
RPM 1200
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 3.7/1.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
