- 20 hp 3600 RPM, 53.0-46.0/23.1 amps 208-230/460 Volts 60 Hz Three Phase Motor

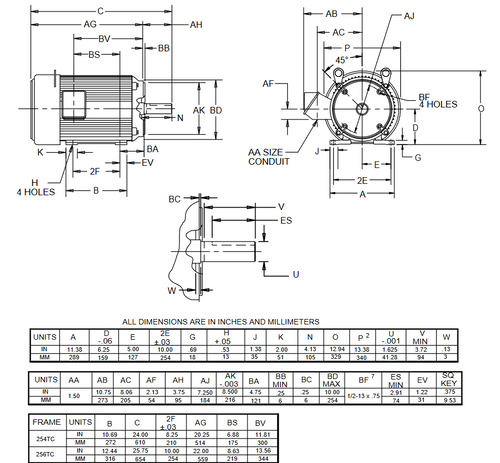

- NEMA 256TC frame Keyed Shaft 1 5/8" Diameter x 4"
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose C- Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DY74
