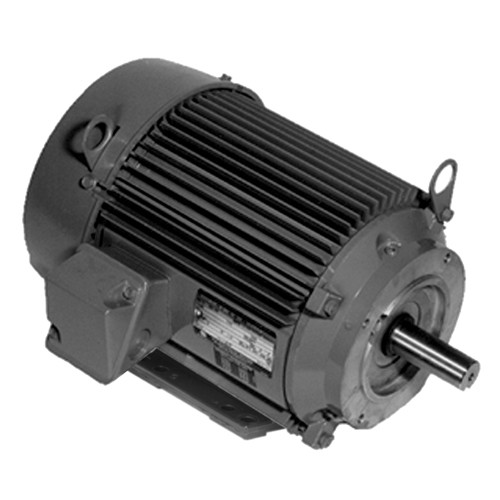

U20P2DC Nidec 20 hp 1800 RPM 256TC Frame 208-230/460V TEFC 3-Phase Electric Motor
U20P2DC Nidec 20 hp 1800 RPM 256TC Frame 208-230/460V TEFC 3-Phase Electric Motor
U20P2DC Nidec 20 hp 1800 RPM 256TC Frame 208-230/460V TEFC 3-Phase Electric Motor
U20P2DC Nidec 20 hp 1800 RPM 256TC Frame 208-230/460V TEFC 3-Phase Electric Motor

Nidec

U20P2DC Nidec 20 hp 1800 RPM 256TC Frame 208-230/460V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$2,090.70
$1,867.03
SKU U20P2DC
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 20 HP
RPM 1800
Phase Three Phase
Frame 256TC
Enclosure TEFC
Hertz 60 Hz
Amperage 47.0/23.5 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 20 hp 1800 RPM, 53.0-47.0/23.5 amps  208-230/460 Volts 60 Hz Three Phase Motor
  • NEMA 256TC frame Keyed Shaft 1 5/8" Diameter x 4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DY80

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 20 HP
RPM 1800
Phase Three Phase
Frame 256TC
Enclosure TEFC
Hertz 60 Hz
Amperage 47.0/23.5 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
!
