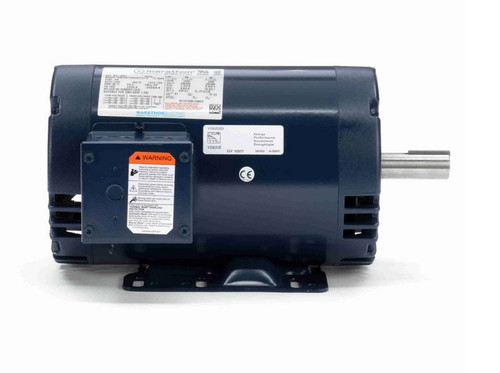

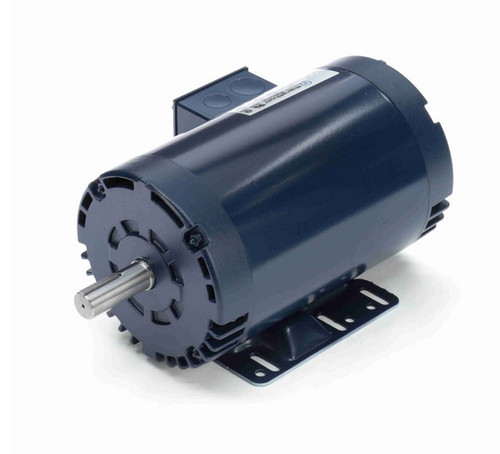

U247 Marathon 3 hp 3600 RPM 230/460V 3-Phase 145T Frame ODP (rigid base) Motor

U247 Marathon 3 hp 3600 RPM 230/460V 3-Phase 145T Frame ODP (rigid base) Motor

The Marathon U247 is a general-purpose, three-phase electric motor designed for industrial applications. It replaces Leeson model C145T34DB16C (121516.00) and features a robust open drip-proof (ODP) enclosure suitable for various environments.

Key Specifications

• Horsepower: 3 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 7.2/3.6 A
• Enclosure: Open Drip-Proof (ODP)
• Frame / Diameter: NEMA Rolled Steel 145T
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and thermostat overload protection. Wiring diagrams are provided on the motor nameplate for easy installation.

Cross Reference

• Leeson C145T34DB16C, 121516.00

Warranty

3 Year Manufacturer Warranty
