U2P2G Nidec 2 hp 1800 RPM 145T Frame 575V TEFC 3-Phase Electric Motor

U2P2G Nidec 2 hp 1800 RPM 145T Frame 575V TEFC 3-Phase Electric Motor

This general-purpose 3-phase electric motor is designed for a wide range of industrial applications requiring reliable performance and durability. It is an ideal replacement motor featuring a totally enclosed fan-cooled (TEFC) design for enhanced protection in various environments.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 575 V
• Amperage: 2.3 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

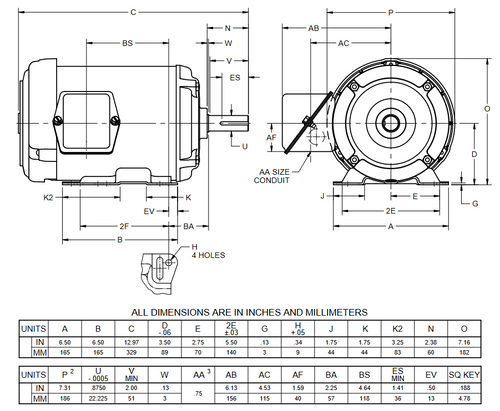

• Frame / Diameter: NEMA 145T
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and is equipped with Class F insulation for enhanced thermal protection. It includes a keyed shaft to ensure secure coupling and comes with a wiring diagram located on the motor nameplate for easy electrical connection. This motor does not include overload protection and has a service factor of 1.25.

Warranty

1 Year Manufacturer Warranty
