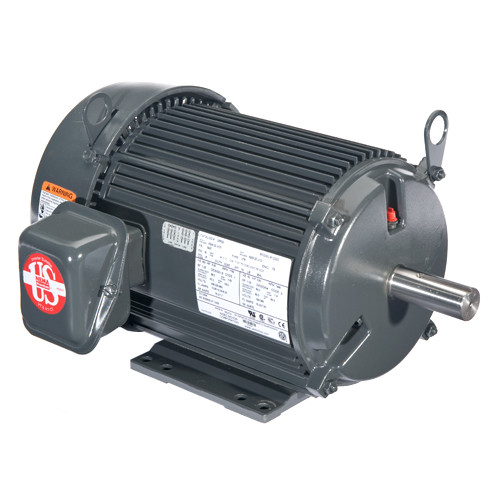

U32D10C Nidec 1 1/2 hp 1800/900 RPM (2 speed) 182T Frame 460V TEFC Constant-Torque 3-Phase Electric Motor
U32D10C Nidec 1 1/2 hp 1800/900 RPM (2 speed) 182T Frame 460V TEFC Constant-Torque 3-Phase Electric Motor
U32D10C Nidec 1 1/2 hp 1800/900 RPM (2 speed) 182T Frame 460V TEFC Constant-Torque 3-Phase Electric Motor
U32D10C Nidec 1 1/2 hp 1800/900 RPM (2 speed) 182T Frame 460V TEFC Constant-Torque 3-Phase Electric Motor

Nidec

U32D10C Nidec 1 1/2 hp 1800/900 RPM (2 speed) 182T Frame 460V TEFC Constant-Torque 3-Phase Electric Motor

(No reviews) Write a Review
$1,532.95
$1,369.19
SKU U32D10C
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 182T
Enclosure TEFC
Hertz 60 Hz
Amperage 2.7 Amps
Bearings Ball Bearings
Speeds 2-Speed
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 1/2 hp 1800/900 RPM (2 speed), 2.7 amps 460 Volts 60 Hz Constant Torque Three Phase Motor
  • NEMA 182T frame Keyed Shaft 1 1/8" Diameter x 2 1/4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

This 3-phase, two winding motor is designed for use in 2-speed applications requiring constant shaft torque.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. C880

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 182T
Enclosure TEFC
Hertz 60 Hz
Amperage 2.7 Amps
Bearings Ball Bearings
Speeds 2-Speed
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
!
