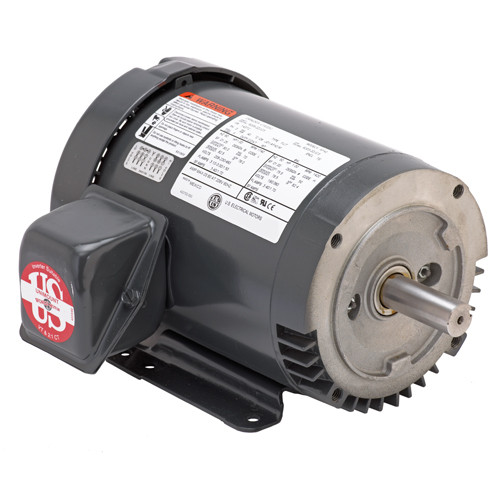

U32P1DC Nidec 1 1/2 hp 3600 RPM 143TC Frame 208-230/460V TEFC 3-Phase Electric Motor

U32P1DC Nidec 1 1/2 hp 3600 RPM 143TC Frame 208-230/460V TEFC 3-Phase Electric Motor

This Nidec general-purpose electric motor delivers 1 1/2 horsepower at 3600 RPM and is designed for three-phase applications requiring reliable performance. It features a totally enclosed fan-cooled (TEFC) design suitable for various industrial and HVAC equipment replacements.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 4.2-3.9/1.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

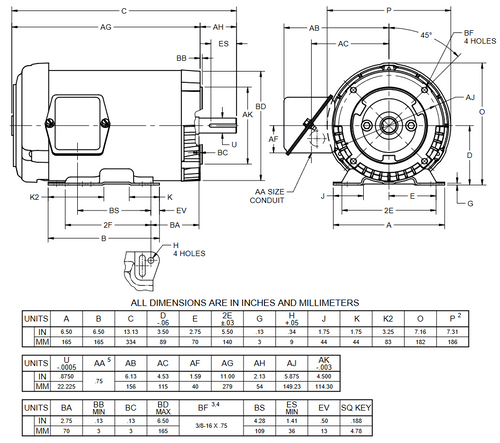

• Frame / Diameter: NEMA 143TC
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Bearings: Ball bearings
• Rotation: Reversible

Product Features & Fitment

The motor is mounted on a rigid base and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and designed for easy wiring with a diagram located on the motor nameplate. This motor does not include overload protection and is suitable for applications requiring a service factor of 1.25.

Warranty

1 Year Manufacturer Warranty
