U32P1GC Nidec 1 1/2 hp 3600 RPM 145TC Frame 575V TEFC 3-Phase Electric Motor

SKU:
U32P1GC
Weight:
30.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $462.00
Now: $412.50
Adding to cart… The item has been added
  • 1 1/2 hp 3600 RPM,  1.6 amps 575 Volts 60 Hz Three Phase Motor

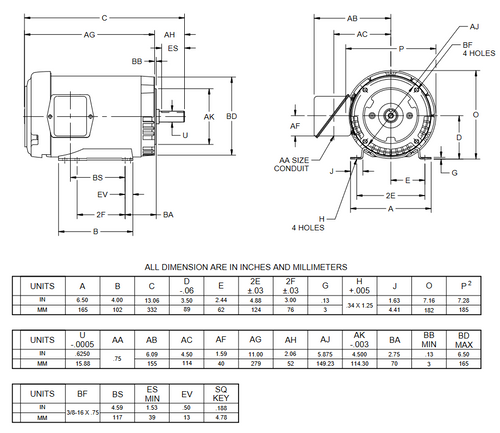

  • NEMA 145TC frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. FD80
