U32P2H Nidec 1 1/2 hp 1800 RPM 143T Frame 200V TEFC 3-Phase Electric Motor

SKU:
U32P2H
Availability:
Subject to Availability
Weight:
35.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $382.00
Now: $341.20
Adding to cart… The item has been added
  • 1 1/2 hp 1800 RPM, 4.7 amps  200 Volts 50/60 Hz Three Phase Motor

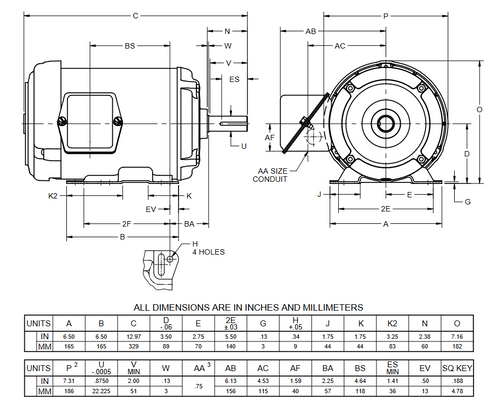

  • NEMA 143T frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. FD25
