U32P3D Nidec 1 1/2 hp 1200 RPM 182T Frame 208-230/460V TEFC 3-Phase Electric Motor

U32P3D Nidec 1 1/2 hp 1200 RPM 182T Frame 208-230/460V TEFC 3-Phase Electric Motor

SKU:
U32P3D
Availability:
Please email for availability
Weight:
60.00 LBS
Width:
19.00 (in)
Height:
13.00 (in)
Depth:
12.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
208/230/460V
Horsepower:
1/2 HP
RPM:
1200
Phase:
Three Phase
Frame:
182T
Enclosure:
TEFC
Hertz:
50/60 Hz
Amperage:
4.7/2.3 Amps
Bearings:
Ball Bearings
Service Factor:
1.25
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $703.80
Now: $628.36
Adding to cart… The item has been added
  • 1 1/2 hp 1200 RPM, 4.8-4.7/2.3 amps  208-230/460 Volts 50/60 Hz Three Phase Motor

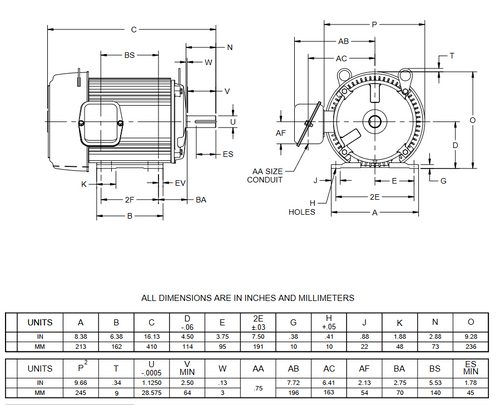

  • NEMA 182T frame Keyed Shaft 1 1/8" Diameter x 2 1/4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. AT25

!
