U34S2AC Nidec 3/4 hp 1800 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

U34S2AC Nidec 3/4 hp 1800 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

This Nidec U34S2AC is a general-purpose, three-phase electric motor designed for a wide range of industrial and HVAC applications. It serves as a reliable replacement motor featuring a totally enclosed fan-cooled (TEFC) design for enhanced durability in various environments.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 2.7-2.7/1.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

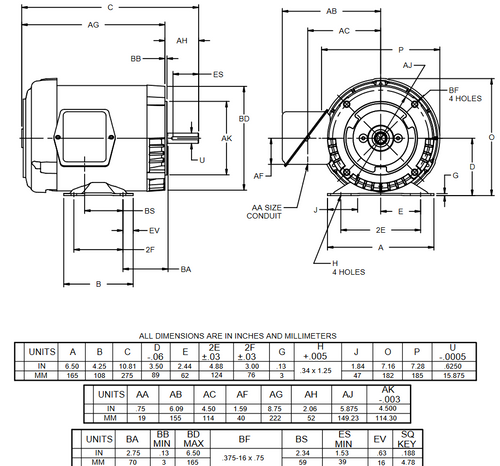

• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base mount and is reversible for flexible installation options. It includes Class F insulation for thermal protection and comes with a wiring diagram on the motor nameplate to assist with proper electrical connections. This motor does not include overload protection and has a service factor of 1.25.

Warranty

1 Year Manufacturer Warranty
