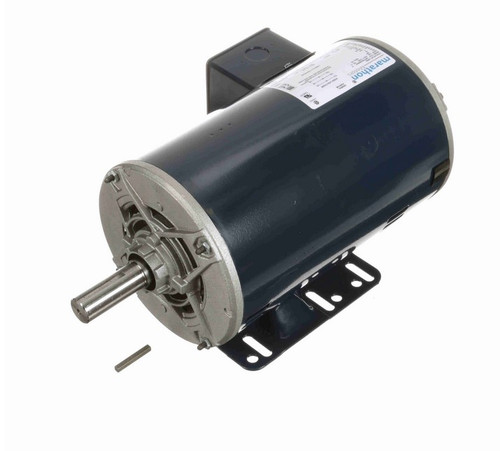

U422A Marathon 2 hp 1800 RPM 200-208V 3-Phase 145T Frame ODP (rigid base) Motor
U422A Marathon 2 hp 1800 RPM 200-208V 3-Phase 145T Frame ODP (rigid base) Motor
U422A Marathon 2 hp 1800 RPM 200-208V 3-Phase 145T Frame ODP (rigid base) Motor
U422A Marathon 2 hp 1800 RPM 200-208V 3-Phase 145T Frame ODP (rigid base) Motor
U422A Marathon 2 hp 1800 RPM 200-208V 3-Phase 145T Frame ODP (rigid base) Motor
U422A Marathon 2 hp 1800 RPM 200-208V 3-Phase 145T Frame ODP (rigid base) Motor
U422A Marathon 2 hp 1800 RPM 200-208V 3-Phase 145T Frame ODP (rigid base) Motor
U422A Marathon 2 hp 1800 RPM 200-208V 3-Phase 145T Frame ODP (rigid base) Motor

Marathon

U422A Marathon 2 hp 1800 RPM 200-208V 3-Phase 145T Frame ODP (rigid base) Motor

(No reviews) Write a Review
$723.65
SKU MU422A
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
STATUS On Sale
Voltage 200/208V
Horsepower 2 HP
RPM 1800
Phase Three Phase
Frame 145T
Enclosure ODP
Hertz 60 Hz
Amperage 6.6/6.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 hp 1800 RPM, 6.6/6.6 amps 200-208 Volts 60 Hz. Three Phase
  • NEMA Rolled Steel 145T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = Automatic
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 3 Year Manufacture Warranty

General purpose three phase electric motor, Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip-Proof. 145TTDR16056

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
STATUS On Sale
Voltage 200/208V
Horsepower 2 HP
RPM 1800
Phase Three Phase
Frame 145T
Enclosure ODP
Hertz 60 Hz
Amperage 6.6/6.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
