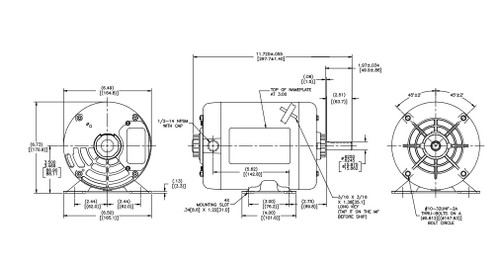

K003A Marathon 1 hp 1800 RPM 208V 3-Phase 56 Frame ODP (rigid base) Motor

K003A Marathon 1 hp 1800 RPM 208V 3-Phase 56 Frame ODP (rigid base) Motor

This Marathon 1 horsepower, 1800 RPM, three-phase electric motor is designed for general-purpose industrial applications. It serves as a reliable replacement motor compatible with equipment requiring a 56 frame, open drip-proof enclosure.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 208 V
• Amperage: 3.3 A
• Enclosure: Open Drip-Proof (ODP)
• Frame / Diameter: NEMA 56 frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base mounting style for secure installation and includes a keyed shaft to ensure proper coupling with driven equipment. It is equipped with Class B insulation and ball bearings for durability and smooth operation. Wiring diagrams are provided on the motor nameplate to facilitate correct electrical connections.

Warranty

3 Year Manufacturer Warranty
