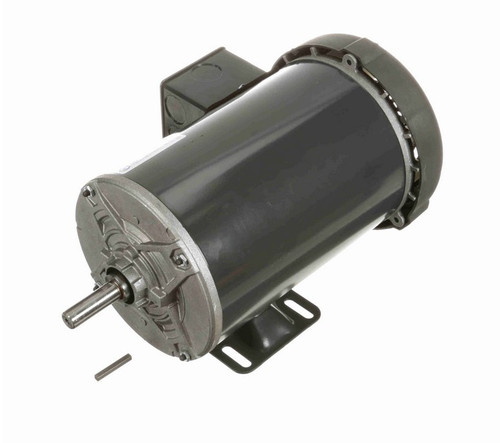

G348A Marathon 1 hp 575V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor

G348A Marathon 1 hp 575V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor

The Marathon G348A is a general-purpose, three-phase motor designed for industrial applications requiring reliable performance and durability. It is suitable for replacing similar 1 hp motors in equipment with a rigid base mount and keyed shaft.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 575 V
• Amperage: 1.3 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56 frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and is equipped with a keyed shaft to ensure secure coupling with driven equipment. It includes Class B insulation and operates at 60 Hz frequency. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
