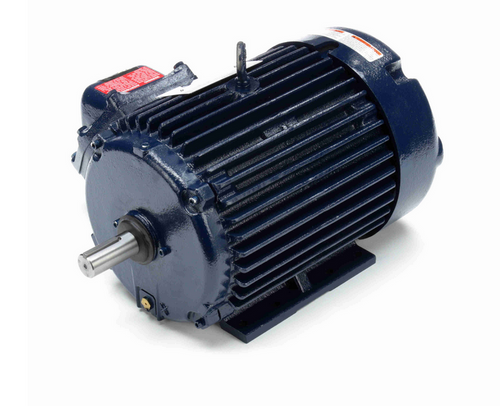

U024A Marathon 5 hp 1800 RPM 3-Phase 184T Frame TEFC (rigid base) 575V Marathon Motor

(No reviews) Write a Review
$0.00
SKU U024A
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCONTINUED
Voltage 575V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184T
Enclosure TEFC
Hertz 60 Hz
Amperage 5.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description

Motor Discontinued

  • 5 hp 1800 RPM, 5.0 amps 575 Volts 60 Hz. 3-Phase
  • NEMA 184T cast iron frame, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15, Overload protection = Thermostat
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Explosion-Proof three phase cast iron electric motor. EXP PROOF CL I GR C&D CL II GR F&G T3B. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.  184TTGN6530

Specifications
Voltage 575V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184T
Enclosure TEFC
Hertz 60 Hz
Amperage 5.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
