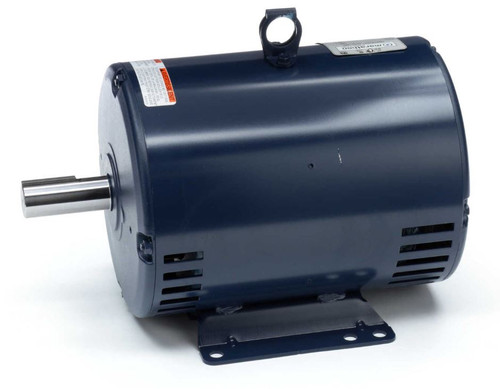

E916B Marathon 5 hp 1800 RPM 3-Phase 184T Frame ODP (rigid base) 575V
E916B Marathon 5 hp 1800 RPM 3-Phase 184T Frame ODP (rigid base) 575V
E916B Marathon 5 hp 1800 RPM 3-Phase 184T Frame ODP (rigid base) 575V
E916B Marathon 5 hp 1800 RPM 3-Phase 184T Frame ODP (rigid base) 575V

Marathon

E916B Marathon 5 hp 1800 RPM 3-Phase 184T Frame ODP (rigid base) 575V

(No reviews) Write a Review
$688.05
SKU ME916B
UPC 7.23E+11
Availability LIMITED STOCK
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
STATUS On Sale While Supplies Last
Voltage 575V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184T
Enclosure ODP
Hertz 60 Hz
Amperage 5.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description

Motor Discontinued. Replaced by Marathon GT0113

  • 5 hp 1800 RPM, 5.1 amps 575 Volts 60 Hz. Three Phase
  • NEMA 184T frame, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip Proof.

Replaces Century E924, E924M2

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
STATUS On Sale While Supplies Last
Voltage 575V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184T
Enclosure ODP
Hertz 60 Hz
Amperage 5.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
