U5P2G Nidec 5 hp 1800 RPM 184T Frame 575V TEFC 3-Phase Electric Motor
U5P2G Nidec 5 hp 1800 RPM 184T Frame 575V TEFC 3-Phase Electric Motor
U5P2G Nidec 5 hp 1800 RPM 184T Frame 575V TEFC 3-Phase Electric Motor
U5P2G Nidec 5 hp 1800 RPM 184T Frame 575V TEFC 3-Phase Electric Motor

Nidec

U5P2G Nidec 5 hp 1800 RPM 184T Frame 575V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$738.30
$659.30
SKU U5P2G
Availability Subject to Availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184T
Enclosure TEFC
Hertz 50/60 Hz
Amperage 5.1 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 hp 1800 RPM, 5.1 amps 575 Volts 50/60 Hz Three Phase Motor

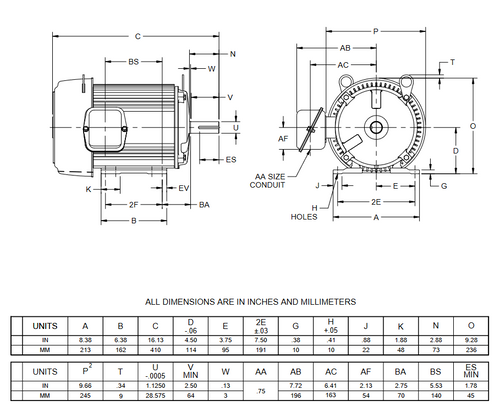

  • NEMA 184T frame Keyed Shaft 1 1/8" Diameter x 2 1/4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. CJ35

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184T
Enclosure TEFC
Hertz 50/60 Hz
Amperage 5.1 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
!
