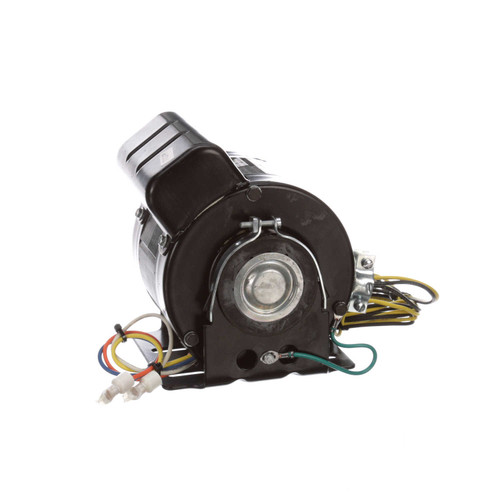

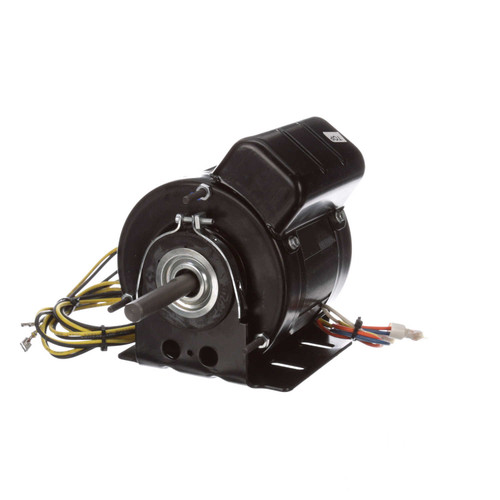

U6521 Century Unit Heater Motor 1/8 hp, 1075 RPM, 115 Volts

U6521 Century Unit Heater Motor 1/8 hp, 1075 RPM, 115 Volts

This Century unit heater motor is designed for reliable operation in heating applications, serving as a direct replacement for similar models including the U6520 (without base). It is ideal for use in unit heaters requiring a compact, efficient motor.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 1075
• Voltage: 115 Volts
• Amperage: 2.6 amps
• Enclosure: Totally Enclosed Air-Over (TEAO)
• Frame / Diameter: 42Y Frame
• Shaft Dimensions: 1/2" diameter x 2 3/8" length
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor design and includes the capacitor for easy installation. The motor case length measures 4.5 inches and it comes with 58-inch leads for flexible wiring. It is engineered for direct replacement in unit heater applications and matches the Dayton 4LY82 motor specifications.

Warranty

1 Year Manufacturer Warranty
