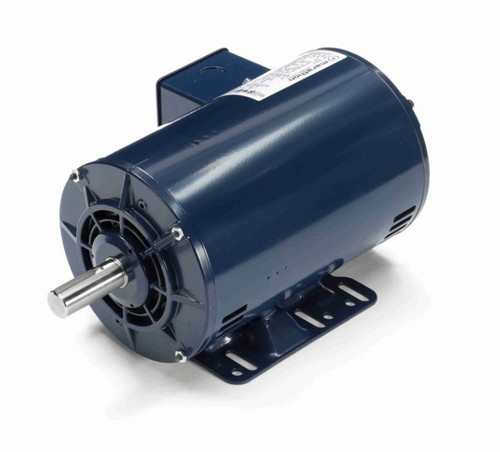

U758-P Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 143T Frame ODP (rigid base) Motor
U758-P Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 143T Frame ODP (rigid base) Motor
U758-P Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 143T Frame ODP (rigid base) Motor
U758-P Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 143T Frame ODP (rigid base) Motor
U758-P Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 143T Frame ODP (rigid base) Motor
U758-P Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 143T Frame ODP (rigid base) Motor
U758-P Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 143T Frame ODP (rigid base) Motor
U758-P Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 143T Frame ODP (rigid base) Motor

Marathon

U758-P Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 143T Frame ODP (rigid base) Motor

(No reviews) Write a Review
$613.76
$541.42
SKU U758-P
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Frame 143T
Enclosure ODP
Hertz 60 Hz
Amperage 3.0/1.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 hp 1800 RPM, 3.0/1.5 amps 208-230/460 Volts 60 Hz. Three Phase
  • NEMA Rolled Steel 143T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Bearing Current Protection
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 3 Year Manufacture Warranty

General purpose three phase electric motor, Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip-Proof

Marathon # 143TTDR16052
Replaces Leeson C143T17DB10F, 121003.00
Replaces Marathon U758





Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Frame 143T
Enclosure ODP
Hertz 60 Hz
Amperage 3.0/1.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
