Nidec

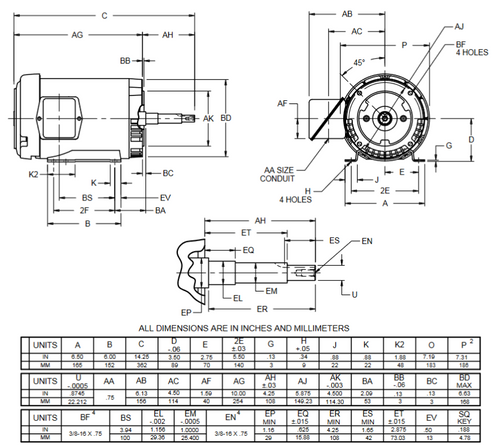

UJ1P1BM Nidec 1 hp 3600 RPM 3-phase 143JM Frame 230/460V TEFC Close-Coupled Pump Motor
- 1 HP 3600 RPM, 2.7/1.4 amps, 230/460V 60hz. 3 Phase.
- NEMA 143JM Rolled Steel Frame, JM stainless steel shaft
- 1.25 Service Factor, Auto Overload Thermal Protection, Class F insulation
- Reversible Rotation, Totally Enclosed Fan Cooled,
- Rigid Base, Ball Bearings,
Close Coupled motors have the pump impeller mounted directly on the shaft. 1 Year Manufacture Warranty. TEFC = Totally Enclosed Fan Cooled, Proof, DZ90
| Compliance Tab | /content/product_tabs/california.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 1 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 143JM |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 2.7/1.4 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class F |
| Rotation | Reversible |
| Mounting | Rigid Base |
