UJ20P2GP Nidec 20 hp 1800 RPM 3-phase 256JP Frame 575V TEFC Close-Coupled Pump Motor
UJ20P2GP Nidec 20 hp 1800 RPM 3-phase 256JP Frame 575V TEFC Close-Coupled Pump Motor
UJ20P2GP Nidec 20 hp 1800 RPM 3-phase 256JP Frame 575V TEFC Close-Coupled Pump Motor
UJ20P2GP Nidec 20 hp 1800 RPM 3-phase 256JP Frame 575V TEFC Close-Coupled Pump Motor

Nidec

UJ20P2GP Nidec 20 hp 1800 RPM 3-phase 256JP Frame 575V TEFC Close-Coupled Pump Motor

(No reviews) Write a Review
$2,153.95
$1,923.26
SKU UJ20P2GP
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 20 HP
RPM 1800
Phase Three Phase

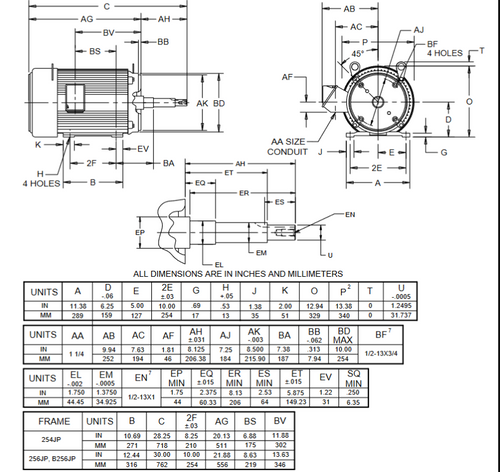

Frame 256JP
Enclosure TEFC
Hertz 60 Hz
Amperage 19.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 20 HP 1800 RPM, 19.0 amps, 575V 60hz. 3 Phase.
  • NEMA 256JP Rolled Steel Frame, JP stainless steel shaft
  • 1.25 Service Factor, Auto Overload Thermal Protection, Class F insulation
  • Reversible Rotation, Totally Enclosed Fan Cooled,
  • Rigid Base, Ball Bearings,

Close Coupled motors have the pump impeller mounted directly on the shaft. 1 Year Manufacture Warranty. TEFC = Totally Enclosed Fan Cooled, Proof, DZ82

Specifications
Voltage 575V
Horsepower 20 HP
RPM 1800
Phase Three Phase
Frame 256JP
Enclosure TEFC
Hertz 60 Hz
Amperage 19.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
!
