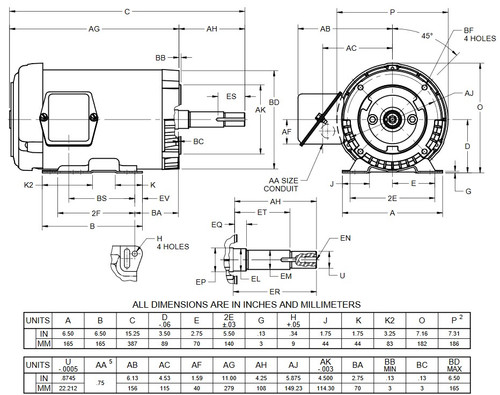

UJ3P1DFM US Motors 3 hp 3600 RPM 3-phase 145JM Frame 208-230/460V Close-Coupled Pump Motor

UJ3P1DFM US Motors 3 hp 3600 RPM 3-phase 145JM Frame 208-230/460V Close-Coupled Pump Motor

This US Motors close-coupled pump motor delivers 3 horsepower at 3600 RPM and is designed for reliable operation in industrial pumping applications. It replaces standard 3-phase motors and is suitable for systems requiring a NEMA 145JM frame and dual voltage compatibility.

Key Specifications

• Horsepower: 3 HP
• RPM: 3600
• Voltage: 208-230/460V
• Amperage: 8.1-7.2/3.6 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 145JM Rolled Steel Frame
• Shaft Dimensions: JM stainless steel shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a 1.25 service factor and Class F insulation for enhanced durability and thermal protection with an auto overload thermal protector. The close-coupled design mounts the pump impeller directly on the motor shaft, simplifying installation and reducing alignment issues. It includes a removable base for flexible mounting options and is built with a robust rolled steel frame for long-lasting performance.

Warranty

1 Year Manufacturer Warranty
