UN10T3BC Nidec 10 hp 1200 RPM 256TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor
UN10T3BC Nidec 10 hp 1200 RPM 256TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor
UN10T3BC Nidec 10 hp 1200 RPM 256TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor
UN10T3BC Nidec 10 hp 1200 RPM 256TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor

Nidec

UN10T3BC Nidec 10 hp 1200 RPM 256TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor

(No reviews) Write a Review
$2,674.90
$2,388.32
SKU UN10T3BC
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 1200
Phase Three Phase
Enclosure TENV
Hertz 60 Hz
Amperage 25.3/12.7 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 10 hp 1200 RPM, 25.3/12.7 amps 230/460 Volts 60 Hz Three Phase Motor

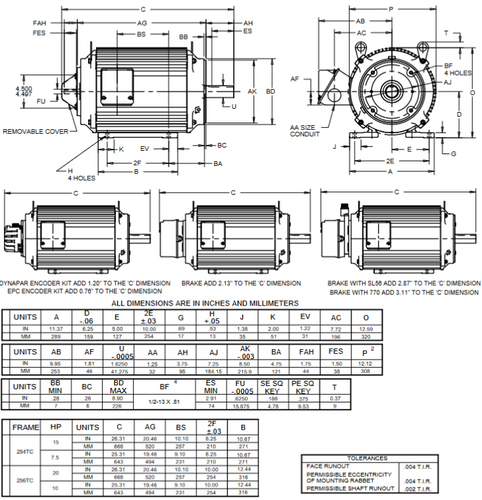

  • NEMA 256TC Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools. 5000:1 constant torque from 0 to nominal motor rpm. NEMA design A. Encoder and brake provisions. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. BV19

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 1200
Phase Three Phase
Enclosure TENV
Hertz 60 Hz
Amperage 25.3/12.7 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
