- 1/3 hp 1800 RPM, 1.1/0.6 amps 230/460 Volts 60 Hz Three Phase Motor

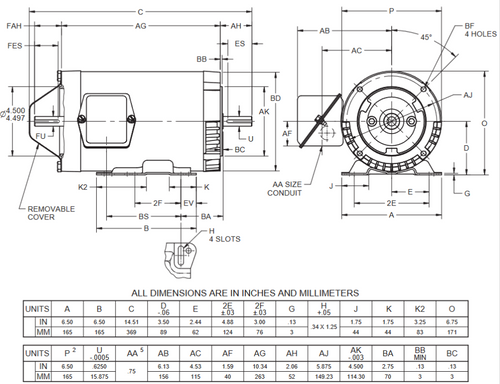

- NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Speed controllable C-Face motor for material handling, cranes and machine tools. 5000:1 constant torque from 0 to nominal motor rpm. NEMA design A. Encoder and brake provisions. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. FD88
